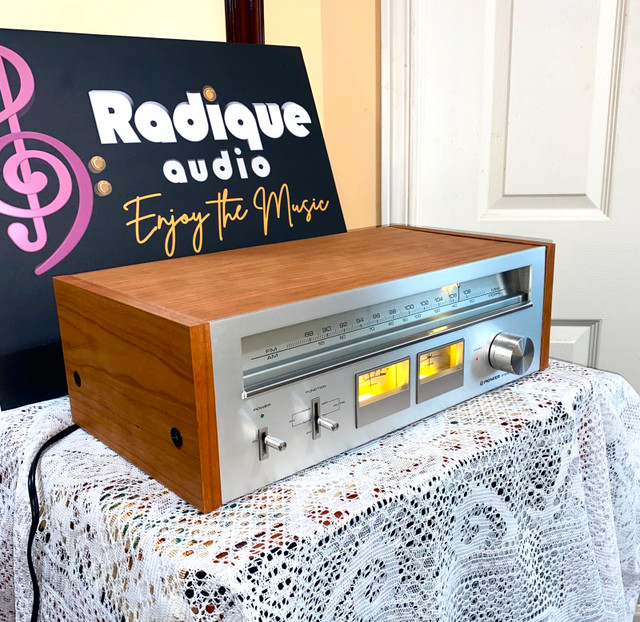

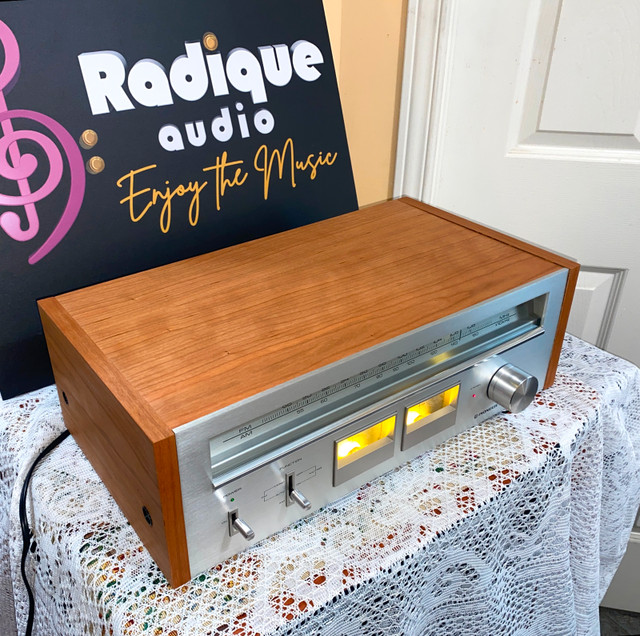

Pioneer Vintage TX-6700 AM/FM Stereo Tuner in beautiful upgraded Cherry Veneer Cabinet.
This exceptional Japanese-made Pioneer TX-6700 is a sophisticated AM/FM stereo tuner from the golden era of audio equipment, featuring outstanding build quality and impressive sound reproduction capabilities. Manufactured during Pioneer's prime years in the mid-to-late 1970s, this component delivers the warm, clear sound quality that vintage Pioneer equipment is renowned for.
The TX-6700 showcases Pioneer's engineering excellence with its high-quality FM front-end section utilizing a high-frequency amplification single-stage circuit that combines an FET with a low noise figure and a frequency linear 3-row varicon. The tuner's IF section employs a dedicated high-integration IC developed by Pioneer, consolidating over 200 elements into a single IC for superior performance.
Sound quality is enhanced by the 5-stage limiter that virtually eliminates AM noise, while the IC PLL circuit in the MPX section improves the stability of separation characteristics. The muting circuit effectively eliminates inter-station noise during channel selection, automatically engaging for FM-auto reception and turning off for FM-mono.

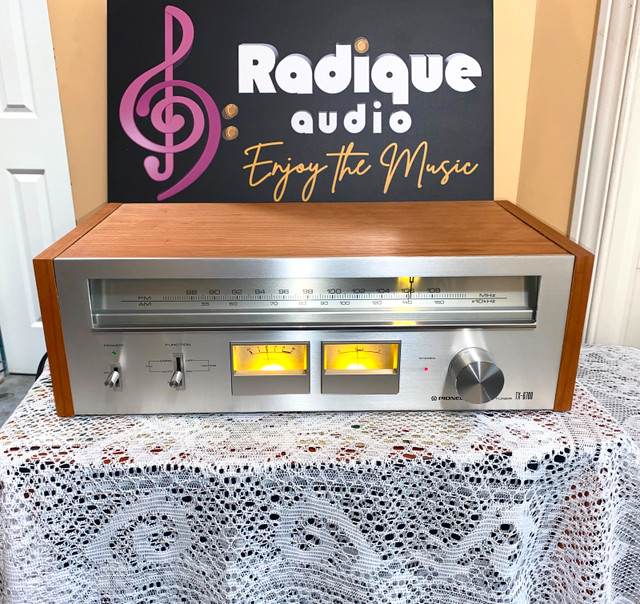

The elegant front panel features a multi-function meter that serves as both a center tuning meter when receiving FM and as a signal meter when receiving AM to indicate signal strength. The intuitive controls allow for precise tuning and optimal reception under various conditions.
Circuit system: FET RF 1-stage, 3-series varicon, 5-stage limiter, quadrature detection PLL MPX
FM Practical sensitivity: Mono 1.9 μV (IHF), Stereo 50 μV (S/N 50dB)
Signal-to-noise ratio: FM Mono 70dB, Stereo 68dB
Capture ratio: 1.0dB
Stereo separation: 35 dB or more (1 kHz)
Frequency response: 50 Hz to 10 kHz +0.2/-0.5 dB
Output level/impedance: 650mV/4.3kΩ
Semiconductor configuration: Transistors 18, FET 2, IC 3, Diodes 14
Dimensions: Width 420 x Height 147 x Depth 264 mm (16.5 x 5.8 x 10.4 inches)
Weight: 4.6 kg (10.1 lbs)
This Japanese-crafted Pioneer TX-6700 represents a perfect blend of vintage audio excellence and reliability. With its impressive technical specifications and classic aesthetic, this tuner would make an outstanding addition to any quality stereo system. Experience the warm, detailed sound that made Pioneer a legendary name in audio equipment.
Asking $395 for this impressive vintage Pioneer Tuner with gorgeous upgraded Cherry wood cabinet; buy with confidence and benefit from Radique's "Bumper to Bumper" warranty and Perpetual trade back policy.
