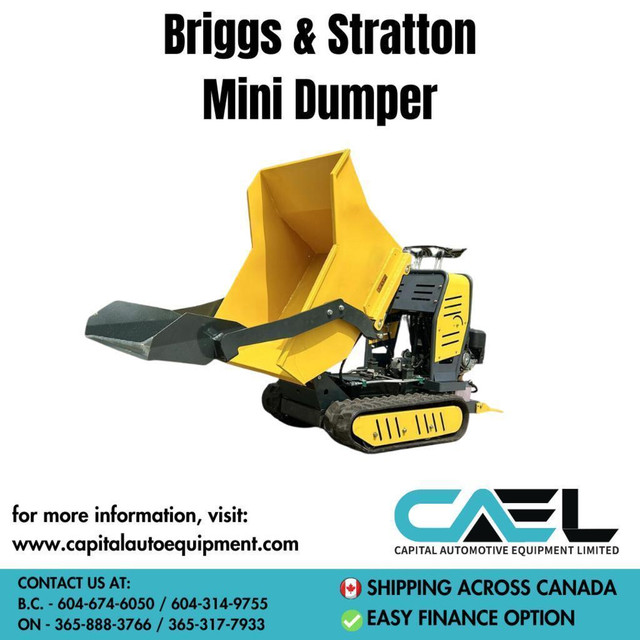

New Mini Dumper Crawler Trucks – Self-loading, Track Carriers

Wholesale prices: Brand new mini dumper crawler truck track carrier dumper self loading With warranty at the lowest price in the market all over Canada and USA 100% customers satisfaction



SPECIFICATIONS:

**Skip**
Length : 1150
Width : 648

Height : 515

Capacity : 0.2 m3

Angle of dumping : 57 /47

Angle from the ground : 10


***Engine***

Model : BRIGGS & STRATTON

Fuel : gasoline
Rated power : 6.8Kw

rotating speed : 3000-/min

Cylinder : 1





*** Hvdraulic system***



Motor : Big torque motor



Double pump : Gear pump



System pressure : 16MPa



System flow : 12ml/min



Hydraulic oil tank capacity : 19.4L





***Body of machine***



Operating weight : 600kg



Load capacity : 500kg



Fuel tank : 5.5L



Speed : 3.5km/h



FULL RISE



Model: CAEL Dumper-BS 2200 lbs

Specifications

Total Weight:880 KG

Engine Model: BRIGGS STRATTON 420

Engine Type: Single cylinder, OHV, 4-stroke, air cooling

Max loading weight horizontal transport: 1000 kgs

Max Lifting load: 550 KG

displacement: 420CC ML

Machin size/Without pedal, without bucket): 1800*880*1920mm

Rated Power: 13.5HP/3600rpm

Bucket size with foot pedal 2700 880*1920mm

Fuel Type: 92 #Gasoline

Container size: 1220*800*600mm

Fuel Consumption:
