Rockford Fosgate TMS69BL9813 6x9" Retro Fit for 1998-2013 Harley

Rockford Fosgate TMS69BL9813 6"x9" 2-way speakers for 1998-2013 Harley-Davidson® motorcycles with hardshell bags

About the Rockford Fosgate TMS69BL9813

Add some sonic muscle to your Harley

Your dream ride is about to get a boost in sound with Rockford Fosgate's TMS69BL9813 package, which contains everything you need to install its 6"x9" 2-way speakers in your bag lid locations. Contoured grilles are included to give your '98-'13 Harley-Davidson a clean, factory look. KEEP READING Product highlights:

Kit Info: compatible with 1998-2013 Harley-Davidson factory bag lids direct connect wiring harness includes all installation hardware, grilles, and accessories Speaker Info: 6"x9"" full-range motorcycle speakers designed for bag lid locations Element-Ready design is weather- and water-resistant carbon-fiber reinforced polypropylene cone glass-reinforced polymer frame 1" film dome tweeter with integrated phase plug and ASA grill integrated 6 dB crossover with polyester capacitor Element-Ready design is weather and water resistant Santoprene VAST surround (creates more cone space for bigger sound) handles up to 100 watts RMS (200 watts peak) frequency response: 56-20,000 Hz sensitivity: 89 dB impedance: 4 ohms warranty: 2 years MFR # TMS69BL9813 What's in the box:

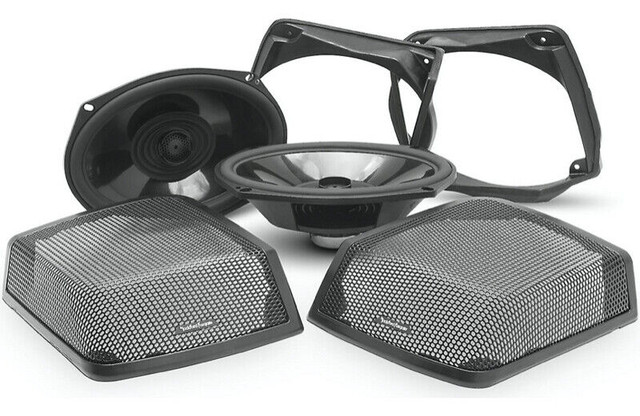

Rockford Fosgate TMS69BL9813 owner's manual Two 2-way TMS69 speakers 2 Grilles 2 Mounting brackets 2 Speaker protectors 2 Templates One 8' Main harness Two 25" Saddlebag harnesses Twenty 1/2" Screws Sixteen 7" Zip ties 10 Adhesive backed zip tie mounts 2 Cable clamps Installation manual 2 Saddlebag load warning stickers

More details on the Rockford Fosgate TMS69BL9813

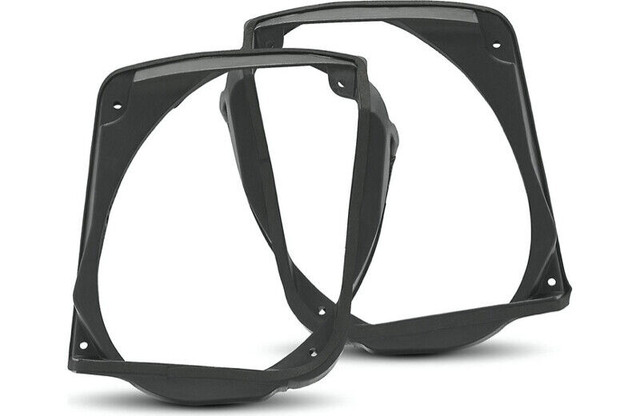

Pat M. Researched by Crutchfield's Pat M. Product Research Features Mounting: The included templates guide cutting the opening in each saddlebag lid. The grille and mounting bracket are bolted together with the saddlebag lid sandwiched between them, then the speaker is mounted to the bottom of the bracket.

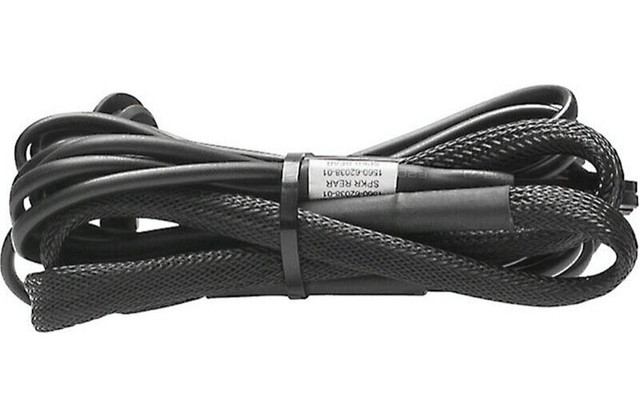

Wiring: The included cables are designed to easily connect the speakers to the output of select Rockford Fosgate compact amplifiers. One end of the included main harness plugs into the rear amplifier output. The other end splits in two and is routed into the saddlebags (grommets included).

Weather: The speakers are made weather resistant by the Santoprene front isolation spider, connecting the tweeter housing and woofer cone assembly.

Klippel Verified: The Klippel distortion analyzer, a device that uses a laser and sophisticated software to do large-scale analysis of drivers in motion, lets Rockford Fosgate optimize the speaker's motor structure, voice coil alignment, and suspension to yield the best possible performance.

CEA-2031 Compliant: The power handling specifications conform to the CEA-2031 industry standards; meaning the speaker has the capacity to handle its rated power under continuous demand, not just for an instant.

VAST Surround: The Vertical Attach Surround Technique (VAST) increases a speaker's effective radiating cone area without increasing the size of the basket. The surround is made of Santoprene rubber.
