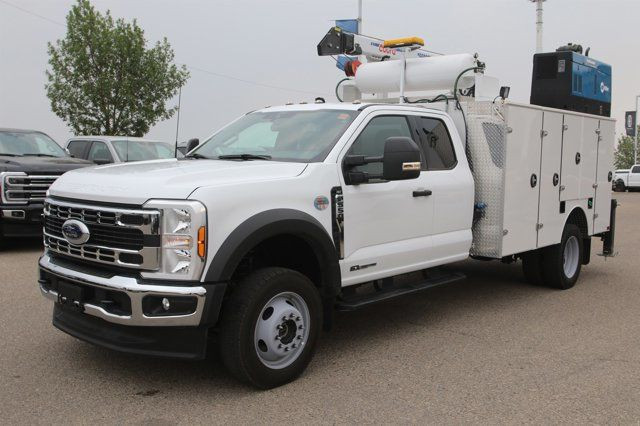

2024 Ford Super Duty F-550 DRW XLT

SBA132DRW84C7-60-A 53k ft-lbs Crane Structure, 60 front cabinet
STANDARD FEATURES
-Body Length: 132 / Body Width: 95 / Body Height 42 or 60
-0.125 Welded 5050-H32 Aluminum
-LED Stop/Tail/Turn Lights
-Stainless Whale Tail Handles
-Three point locking system
-Dual Automotive Door Seals
-Formed Drip Edge
-Shelving: 2 Per Vertical (42 and 3 on 60). 1 on Horizontal
-Shelving: 60 Passenger side vented w/ bottle bracket
-6 J-Hooks in right rear inlieu of shelving
-Master Locking System
-Six 2000lb Swivel Tie Downs in load space
-Two Rear Grab Handles
-LED Strip lighting in all compartments
-Front Gravel Guards
-Gas Shock Door Holders (Vertical) Chains (Horizontal)
-11 Tailgate
-Powder Coat White
*2024 Ford F550*
CRANE MOUNT SPEC:
Cobra 5500 -- 3,4 tm
two telescopic extensions with fully hydraulic stages
horizontal extension (from center of rotation):m 6,08
Crane Tower Rating: 30'000 to 53,000 ft.lbs
Rear Mount Cabinet Material: STRENX 100 XF 1/2 Thick and 5/16 thick Steel
Rear Cabinet Dimensions: 21.50W x 36.25H
Type E 0B-TD-EML-PMS-BIG 45K Manual out/down stabilizer
Tank 15G Aluminum Side
E-TRACK,HORIZONTAL,(10FT)GREYGrip Strut Grating, Alum, 5052-H32
diamond Luverne - 17+ FORD SD W2W GRIP/RGL BRK Set of 2 Grip Step End
Caps plus hardware
OIL EVAC PACKAGE
Loaf Tank 24 x 30 x 25 55 Imp Gal Pump Husky 1050A,TP,AC,TO,A UL
Listed Graco 1' 4-way directional control valve,2 1/4 Port 125 PSI Without
Gauge Miniature 1
AIR COMPRESSOR PACKAGE
Positive AIr Shut-Off DTI3000-Basic 6.7l Ford Turbo Side 17-20M
Miller Trailblazer 302 Air Pak MW90754900
Output Range DC stick 25--300 A
MIG/flux-cored 13--35 V, 350 A
DC TIG 10--300 A
AC TIG/stick 10--225 A
Generator Power Output Rated at 104(0)F (40(0)C)
13,000 watts peak, 11,000 watts continuous
Air Compressor
31 cfm, 100% duty cycle, 80--160 psi
Battery Charge/Crank Assist
Battery charge: 12/24 V, 10--75 A
Battery crank assist: 12/24 V, 450 A /350 A

Dealer License #307287

Engine: 8 Cylinder Engine 6.7L

Safety Equipment

• Side Impact Beams
• Dual Stage Driver And Passenger Seat-Mounted Side Airbags
• Collision Mitigation-Front
• Emergency Sos
• Safety Canopy System Curtain 1st And 2nd Row Airbags
• Lane Departure Warning
• Pre-Collision Assist with Automatic Emergency Braking (AEB)
• Dual Stage Driver And Passenger Front Airbags w/Passenger Off Switch
• Outboard Front Lap And Shoulder Safety Belts -inc: Height Adjusters
• Driveline Traction Control

Interior Equipment

• Manual Tilt/Telescoping Steering Column
• Power Rear Windows
• Front Cupholder
• Rear Cupholder
• Remote Keyless Entry w/Integrated Key Transmitter, Illuminated Entry and Panic Button
• Cruise Control w/Steering Wheel Controls
• HVAC -inc: Underseat Ducts
• Full Cloth Headliner
• Urethane Gear Shifter Material
• Day-Night Rearview Mirror
• Fade-To-Off Interior Lighting
• Full Carpet Floor Covering -inc: Carpet Front And Rear Floor Mats
• Delayed Accessory Power
• Driver Information Centre
• Trip Computer
• Outside Temp Gauge
• Digital/Analog Appearance
• Seats w/Cloth Back Material
• Air Filtration
• Compass
• Illuminated Locking Glove Box
• 2 Seatback Storage Pockets
• 3 12V DC Power Outlets
• Smart Device Remote Engine Start
• Power 1st Row Windows w/Driver And Passenger 1-Touch Up/Down
• 4-Way Passenger Seat -inc: Manual Recline and Fore/Aft Movement
• Manual Air Conditioning
• Front Map Lights
• Smart Device Integration
• Manual Adjustable Rear Head Restraints
• Securilock Anti-Theft Ignition (pats) Immobilizer
• Driver And Passenger Visor Vanity Mirrors
• Front Centre Armrest w/Storage
• Power Door Locks
• 4-Way Driver Seat -inc: Manual Recline and Fore/Aft Movement
• 60-40 Folding Split-Bench Front Facing Fold-Up Cushion Rear Seat
• 3 12V DC Power Outlets and 2 120V AC Power Outlets
• FordPass Connect 5G Mobile Hotspot Internet Access
• Gauges -inc: Speedometer, Odometer, Oil Pressure, Engine Coolant Temp, Tachometer, Transmission Fluid Temp, Engine Hour Meter, Trip Odometer and Trip Computer
• Interior Trim -inc: Metal-Look Instrument Panel Insert and Chrome Interior Accents
• Instrument Panel Covered Bin, Dashboard Storage, Driver / Passenger And Rear Door Bins and Locking 1st Row Underseat Storage
• Full Overhead Console w/Storage, 3 12V DC Power Outlets and 2 120V AC Power Outlets
• Cloth 40/20/40 Split Bench Seat w/Recline -inc: fold down centre armrest w/2 cupholders, lift up centre-seat w/locking storage, powerpoint, driver's side manual lumbar and 2-way adjustable driver/passenger headrests
• Instrument Panel Covered Bin, Dashboard Storage, Driver / Passenger And Rear Door Bins
• 3 12V DC Power Outlets and 2 Interior 120V AC Power Outlets
• Full Overhead Console w/Storage, 3 12V DC Power Outlets and 2 Interior 120V AC Power Outlets

Exterior Equipment

• Clearcoat Paint
• Front License Plate Bracket
• Perimeter/Approach Lights
• Black Door Handles
• Variable Intermittent Wipers
• Chrome Grille
• Fixed Rear Window
• Aluminum Panels
• Black Side Windows Trim and Black Front Windshield Trim
• Black Fender Flares
• Chrome Front Bumper w/Body-Coloured Rub Strip/Fascia Accent and 2 Tow Hooks
• Manual Extendable Trailer Style Mirrors
• Black Power Heated Side Mirrors w/Convex Spotter, Manual Folding and Turn Signal Indicator
• Privacy Glass
• Autolamp Auto On/Off Reflector Halogen Headlamps w/Delay-Off
• Cab Clearance Lights
• Front Splash Guards
• Reverse Opening Rear Doors
• Wheels: 19.5" Argent Painted Steel
• Tires: 225/70Rx19.5G BSW A/P -inc: Spare may not be the same as the road tire
• Non-Metallic Paint

Entertainment Equipment

• 2 LCD Monitors In The Front
• Fixed Antenna
• Radio w/Seek-Scan, Clock and Speed Compensated Volume Control
• Wireless Phone Connectivity
• SYNC 4 -inc: 8" LCD capacitive touchscreen w/swipe capability, information on demand panel, wireless phone connection, cloud connected, AppLink w/app catalog, 911 Assist, Apple CarPlay and Android Auto compatibility and digital owner's manual
• Radio: AM/FM Stereo w/MP3 Player -inc: 7 speakers and SiriusXM satellite radio w/3-month prepaid subscription, Trial length and service availability may vary by model, model year or trim, SiriusXM audio and data services each require a subscription sold separately, or as a package, by SiriusXM Radio Inc, Your SiriusXM service will automatically stop at the end of your trial unless you decide to subscribe, If you decide to continue service after your trial, the subscription plan you choose will automatically renew thereafter and you will be charged according to your chosen payment method at then-current rates, Fees and taxes apply, To cancel you must call SiriusXM at 1-888-539-7474, See SiriusXM customer agreement for complete terms at www.siriusxm.ca, All fees and programming subject to change, Not all vehicles or devices are capable of receiving all services offered by SiriusXM, Current information and features may not be available in all locations, or on all receivers, Satellite and streaming lineups vary slightly, 2020 Sirius XM Radio Inc, Sirius, XM, SiriusXM and all related marks and logos are trademarks of Sirius XM Radio Inc

Mechanical Equipment

• Single Stainless Steel Exhaust
• Front And Rear Anti-Roll Bars
• Battery w/Run Down Protection
• Trailer Wiring Harness
• Auto Locking Hubs
• Upfitter Switches
• Electronic Transfer Case
• 4-Wheel Disc Brakes w/4-Wheel ABS, Front And Rear Vented Discs, Brake Assist and Hill Hold Control
• Transmission w/Oil Cooler
• Part-Time Four-Wheel Drive
• HD Shock Absorbers
• Hydraulic Power-Assist Steering
• Solid Axle Rear Suspension w/Leaf Springs
• Towing Equipment -inc: Brake Controller and Trailer Sway Control
• Engine: 7.3L 2V DEVCT NA PFI V8 Gas
• Firm Suspension
• Front Suspension w/Coil Springs
• Dual 250 Amp Alternator
• Dual Rear Wheels
• Transmission: TorqShift 10-Speed Automatic -inc: 10R140 w/neutral idle, SelectShift and selectable drive modes: normal, tow/haul, eco, slippery roads and off-road
• Limited Slip w/4.88 Axle Ratio
• GVWR: 8,165 kgs (18,000 lbs) Payload Package
• 151.4 L Fuel Tank
• 4776.3 Kgs Maximum Payload
• Dual 68 AH AGM 750 CCA Batteries
• 4817.2 Kgs Maximum Payload
• HD Gas-Pressurized Shock Absorbers

Other Equipment

• ENGINE: 6.7L 4V OHV POWER STROKE V8 TURBO DIESEL B20 -inc: Operator Commanded Regeneration (OCR) transmission mounted live drive and stationary mode PTO 27 litre (7.2 gallon) plastic urea tank urea gauge and intelligent oil life monitor Limited Slip w/4.10 Axle Ratio Engine Block Heater Rapid-Heat Supplemental Cab Heater,OXFORD WHITE,REAR VIEW CAMERA & PREP KIT -inc: loose camera and wiring bundle,XLT VALUE PACKAGE -inc: Power Adjustable Pedals Rear Underseat Storage Fixed/non-locking SecuriCode Driver's Side Keyless Entry Keypad Halogen Fog Lamps Electrochromic Rear View Mirror Heated Driver's Seat 8-Way Power Driver Seat/Lumbar Remote Start Autolock/Auto Unlock Rear Window Defroster,PLATFORM RUNNING BOARDS,6-TON HYDRAULIC JACK,EXTERIOR BACK-UP ALARM,CARPET DELETE -inc: Replaced w/black flooring,TRANSMISSION: TORQSHIFT 10-SPEED AUTOMATIC -inc: 10R140 w/neutral idle SelectShift and selectable drive modes: normal tow/haul eco slippery roads and off-road (STD),TIRES: 225/70RX19.5G BSW MAX TRACTION #2 -inc: 4 traction tires on the rear and 2 traction tires on the front Not recommended for over the road applications
• could incur irregular front tire wear and/or NVH Spare may not be the same as the road tire,ENGINE BLOCK HEATER,SNOW PLOW PREP PACKAGE -inc: pre-selected springs (See Super Duty supplemental reference manual for springs/GAWR of specific vehicle configurations) Note 1: Restrictions apply
• see Super Duty supplemental reference manual or body builders layout book for details Note 2: Also allows for the attachment of a winch Note 3: Upgraded front springs will result in stiffer ride when a snow plow is not installed Note 4: Highly recommended to add (86M) dual battery 7.3L gas engines,TRANSFER CASE SKID PLATES,GVWR: 8 845 KGS (19 500 LBS) PAYLOAD PACKAGE -inc: upgraded frame upgraded rear-axle low deflection/high capacity rear springs and 14 706 lbs max rear GAWR Note: See Super Duty Supplemental Reference Manual for further details on GVWR,HIGH CAPACITY TRAILER TOW PACKAGE -inc: upgraded rear axle Increases GCWR from 32 500 lbs to 40 000 lbs Note: Salesperson's Portfolio or Trailer Towing Guide should be consulted for specific trailer towing or camper limits and corresponding required equipment axle ratios and model availability See Supplemental Reference for vehicle height consideration,LIMITED SLIP W/4.30 AXLE RATIO,MEDIUM DARK SLATE CLOTH 40/20/40 SPLIT BENCH SEAT W/RECLINE -inc: fold down centre armrest w/2 cupholders lift up centre-seat w/locking storage powerpoint driver's side manual lumbar and 2-way adjustable driver/passenger headrests,INTERIOR WORK SURFACE,ORDER CODE 663A,Locking/Limited Slip Differential,Four Wheel Drive,Variable Speed Intermittent Wipers,Power Mirror(s),Power Steering,ABS,Steel Wheels,Tires - Front All-Season,Dual Rear Wheels,Integrated Turn Signal Mirrors,Heated Mirrors,Intermittent Wipers,AM/FM Stereo,4-Wheel Disc Brakes,Satellite Radio,Brake Assist,Privacy Glass,Tires - Rear All-Season,Requires Subscription,Tow Hooks,Automatic Headlights,WiFi Hotspot,Bluetooth Connection,Immobilizer,Adjustable Steering Wheel,Front Collision Mitigation,Rear Bench Seat,Telematics,Trip Computer,Cruise Control,Telematics,Driver Air Bag,Passenger Air Bag,Remote Engine Start,Rear Head Air Bag,Power Door Locks,Requires Subscription,Floor Mats,Power Door Locks,Front Side Air Bag,Trip Computer,Keyless Entry,Steering Wheel Audio Controls,Split Bench Seat,Requires Subscription,Cloth Seats,Traction Control,Lane Departure Warning,Passenger Vanity Mirror,Driver Adjustable Lumbar,Front Head Air Bag,Passenger Air Bag On/Off Switch,Bluetooth Connection,Driver Vanity Mirror,Power Windows,A/C,Pass-Through Rear Seat,Smart Device Integration,Power Windows,Smart Device Integration,Requires Subscription,Auxiliary Audio Input,MP3 Capability,MP3 Capability
• see Super Duty supplemental reference manual or body builders layout book for details Note 2: Also allows for the attachment of a winch Note 3: Upgraded front springs will result in stiffer ride when a snow plow is not installed Note 4: Highly recommended to add (86M) dual battery 7.3L gas engines,TRANSFER CASE SKID PLATES,GVWR: 8 845 KGS (19 500 LBS) PAYLOAD PACKAGE -inc: upgraded frame upgraded rear-axle low deflection/high capacity rear springs and 14 706 lbs max rear GAWR Note: See Super Duty Supplemental Reference Manual for further details on GVWR,HIGH CAPACITY TRAILER TOW PACKAGE -inc: upgraded rear axle Increases GCWR from 32 500 lbs to 40 000 lbs Note: Salesperson's Portfolio or Trailer Towing Guide should be consulted for specific trailer towing or camper limits and corresponding required equipment axle ratios and model availability See Supplemental Reference for vehicle height consideration,LIMITED SLIP W/4.30 AXLE RATIO,MEDIUM DARK SLATE CLOTH 40/20/40 SPLIT BENCH SEAT W/RECLINE -inc: fold down centre armrest w/2 cupholders lift up centre-seat w/locking storage powerpoint driver's side manual lumbar and 2-way adjustable driver/passenger headrests,INTERIOR WORK SURFACE,ORDER CODE 663A,Locking/Limited Slip Differential,Four Wheel Drive,Variable Speed Intermittent Wipers,Power Mirror(s),Power Steering,ABS,Steel Wheels,Tires - Front All-Season,Dual Rear Wheels,Integrated Turn Signal Mirrors,Heated Mirrors,Intermittent Wipers,AM/FM Stereo,4-Wheel Disc Brakes,Satellite Radio,Brake Assist,Privacy Glass,Tires - Rear All-Season,Tow Hooks,Automatic Headlights,WiFi Hotspot,Immobilizer,Adjustable Steering Wheel,Front Collision Mitigation,Rear Bench Seat,Cruise Control,Driver Air Bag,Passenger Air Bag,Remote Engine Start,Rear Head Air Bag,Floor Mats,Front Side Air Bag,Keyless Entry,Steering Wheel Audio Controls,Split Bench Seat,Cloth Seats,Traction Control,Lane Departure Warning,Passenger Vanity Mirror,Driver Adjustable Lumbar,Front Head Air Bag,Passenger Air Bag On/Off Switch,Driver Vanity Mirror,A/C,Pass-Through Rear Seat,Auxiliary Audio Input
• see Super Duty supplemental reference manual or body builders layout book for details Note 2: Also allows for the attachment of a winch Note 3: Upgraded front springs will result in stiffer ride when a snow plow is not installed Note 4: Highly recommended to add (86M) dual battery 7.3L gas engines,TRANSFER CASE SKID PLATES,GVWR: 8 845 KGS (19 500 LBS) PAYLOAD PACKAGE -inc: upgraded frame upgraded rear-axle low deflection/high capacity rear springs and 14 706 lbs max rear GAWR Note: See Super Duty Supplemental Reference Manual for further details on GVWR,HIGH CAPACITY TRAILER TOW PACKAGE -inc: upgraded rear axle Increases GCWR from 32 500 lbs to 40 000 lbs Note: Salesperson's Portfolio or Trailer Towing Guide should be consulted for specific trailer towing or camper limits and corresponding required equipment axle ratios and model availability See Supplemental Reference for vehicle height consideration,LIMITED SLIP W/4.30 AXLE RATIO,MEDIUM DARK SLATE CLOTH 40/20/40 SPLIT BENCH SEAT W/RECLINE -inc: fold down centre armrest w/2 cupholders lift up centre-seat w/locking storage powerpoint driver's side manual lumbar and 2-way adjustable driver/passenger headrests,INTERIOR WORK SURFACE,ORDER CODE 663A,Locking/Limited Slip Differential,Four Wheel Drive,Variable Speed Intermittent Wipers,Power Mirror(s),Power Steering,ABS,Steel Wheels,Tires - Front All-Season,Dual Rear Wheels,Integrated Turn Signal Mirrors,Heated Mirrors,Intermittent Wipers,AM/FM Stereo,4-Wheel Disc Brakes,Satellite Radio,Brake Assist,Privacy Glass,Tires - Rear All-Season,Requires Subscription,Tow Hooks,Automatic Headlights,Bluetooth Connection,Telematics,Requires Subscription,Steering Wheel Audio Controls,Smart Device Integration,Auxiliary Audio Input,MP3 Capability,Driver Air Bag,Power Door Locks,A/C,Lane Departure Warning,Remote Engine Start,Power Windows,Trip Computer,Floor Mats,Passenger Air Bag On/Off Switch,Cloth Seats,Cruise Control,Trip Computer,Power Door Locks,Passenger Air Bag,Driver Vanity Mirror,Adjustable Steering Wheel,Rear Head Air Bag,Immobilizer,Keyless Entry,Split Bench Seat,Power Windows,Requires Subscription,Traction Control,Passenger Vanity Mirror,Front Head Air Bag,Pass-Through Rear Seat,Front Side Air Bag,Driver Adjustable Lumbar,Rear Bench Seat,WiFi Hotspot,Front Collision Mitigation
• see Super Duty supplemental reference manual or body builders layout book for details Note 2: Also allows for the attachment of a winch Note 3: Upgraded front springs will result in stiffer ride when a snow plow is not installed Note 4: Highly recommended to add (86M) dual battery 7.3L gas engines,TRANSFER CASE SKID PLATES,GVWR: 8 845 KGS (19 500 LBS) PAYLOAD PACKAGE -inc: upgraded frame upgraded rear-axle low deflection/high capacity rear springs and 14 706 lbs max rear GAWR Note: See Super Duty Supplemental Reference Manual for further details on GVWR,HIGH CAPACITY TRAILER TOW PACKAGE -inc: upgraded rear axle Increases GCWR from 32 500 lbs to 40 000 lbs Note: Salesperson's Portfolio or Trailer Towing Guide should be consulted for specific trailer towing or camper limits and corresponding required equipment axle ratios and model availability See Supplemental Reference for vehicle height consideration,LIMITED SLIP W/4.30 AXLE RATIO,MEDIUM DARK SLATE CLOTH 40/20/40 SPLIT BENCH SEAT W/RECLINE -inc: fold down centre armrest w/2 cupholders lift up centre-seat w/locking storage powerpoint driver's side manual lumbar and 2-way adjustable driver/passenger headrests,INTERIOR WORK SURFACE,ORDER CODE 663A,Locking/Limited Slip Differential,Four Wheel Drive,Satellite Radio,Automatic Headlights,Power Mirror(s),Smart Device Integration,Dual Rear Wheels,Front Head Air Bag,Heated Mirrors,Passenger Air Bag,MP3 Capability,Lane Departure Warning,4-Wheel Disc Brakes,Keyless Entry,Pass-Through Rear Seat,Front Collision Mitigation,Front Side Air Bag,Auxiliary Audio Input,Rear Bench Seat,Power Windows,Tires - Front All-Season,Power Door Locks,ABS,AM/FM Stereo,Intermittent Wipers,Passenger Vanity Mirror,Driver Adjustable Lumbar,Rear Head Air Bag,Cruise Control,Telematics,Steering Wheel Audio Controls,Requires Subscription,Passenger Air Bag On/Off Switch,Steel Wheels,Floor Mats,Trip Computer,Smart Device Integration,Variable Speed Intermittent Wipers,Integrated Turn Signal Mirrors,Trip Computer,Power Steering,Driver Vanity Mirror,Brake Assist,Requires Subscription,Traction Control,Privacy Glass,Immobilizer,Power Door Locks,Bluetooth Connection,Split Bench Seat,Power Windows,Cloth Seats,WiFi Hotspot,Driver Air Bag,Tires - Rear All-Season,Tow Hooks,Adjustable Steering Wheel,Requires Subscription,A/C
