2005 Chevrolet C4500 CREW CAB C4500 DURAMAX DIESEL TOPKICK HA...

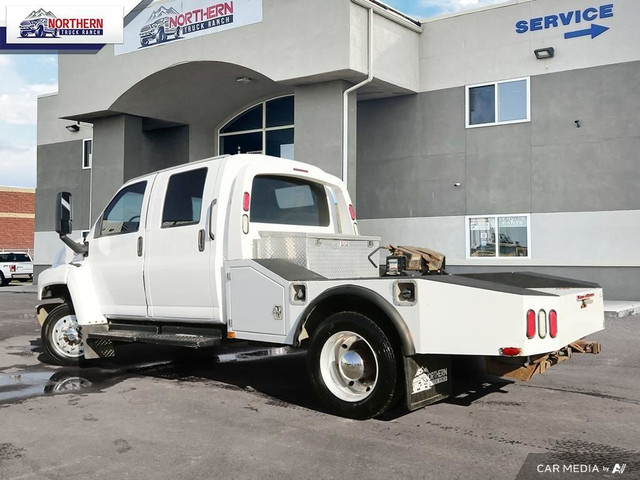

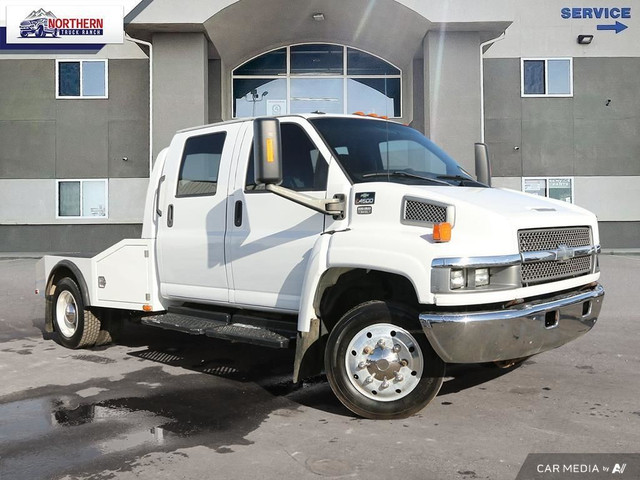

WAS: $55900 NOW: $49900 plus taxes and licensing fees2005 CHEVROLET C4500 TOPKICK HAULER DECK FIFTH WHEEL HITCH EXTRA STORAGE BOXES DURAMAX DIESEL UNIT IS IN MILES 93,493 MI

Northern Truck Ranch is an AMVIC Licensed Dealer. We specialize in all types of trucks! PICK UP TRUCKS, DIESEL TRUCKS, FLATBED TRUCKS, PICKER TRUCKS, WORK TRUCKS, SERVICE TRUCKS, ANY TRUCK YOU NEED. If we don't have it, we can help you find it. We also offer financing and leasing. Take advantage of our competitive prices. We are located in Leduc, AB at 6609 Sparrow Drive or call us at 1-833-254-1640.

Safety Equipment

• Daytime running lights
• 4-wheel disc, 4-channel ABS
• Air bags, Supplemental Inflatable Restraints not included.
• This vehicle does not include any air bags

Interior Equipment

• Rear bench seat
• Cloth headliner
• Seat trim, vinyl, Very Dark Pewter
• Trim console - located next to driver's seat, and two cupholder
• Molded vinyl floor covering
• Headlamp warning buzzer
• Warning tone, key-in-ignition
• Tachometer with automatic and manual transmissions
• Electronic engine hour meter
• Engine "Check Gauges" telltale light and buzzer, oil pressure gauge
• Gauges, low oil pressure and coolant level, high coolant and engine oil temperature
• Vinyl door trim panels - with storage pocket on front doors, beverage holders, and reflector on all doors
• Coat hooks (2) located on cab back panel
• Air conditioning not desired - this option should be ordered only when a customer does not require air conditioning
• Underhood bodybuilder connections accessory power supply - Provides 12V power supply from the battery with two separate 30 amp fused circuits
• Steering wheel, simulated leather
• Sunshades, passenger side and driver side, vinyl-covered
• Seat belt warning indicator
• Steering, power - ZF variable ratio power
• Powerpoints - one in-cab power source (in addition to optional cigarette lighter) for electrical plug-in accessories
• Radio, Delco AM-FM stereo radio - with coaxial speakers in all door panels
• Seat, driver, high-back bucket, Fixed height, manual adjuster - storage in the seat riser with a small lip at the front to stop contents from sliding out
• Seat, passenger, high-back bucket, Fixed height, manual back angle adjuster - storage in the seat riser with a small lip at the front to stop contents from sliding out
• Interior trim, Very Dark Pewter (Requires 69V Very Dark Pewter Vinyl or 69C Very Dark Pewter Cloth)

Exterior Equipment

• Daytime running lights
• Paint scheme, solid, upper color, Summit White
• Paint scheme, solid, lower color, Summit White
• Exterior roof drip moldings
• Bumper, front, steel, 96" (243.8 cm) wide - styled to minimized wall to wall turn diameter painted argent
• Steps under cab doors
• Integral grille and fenders - The grille is the same color as hood with single halogen headlamps.
• Provisions for mounting front license plate
• Windshield wipers, intermittent, with pulse washers
• Mirror, manual, 102" (259 cm) wide load, integral arm, integral convex mirror - black molded composite 12" x 7" (30.5 cm x 17.8 cm) with 6" x 7" (15.2 cm x 17.8 cm) convex section
• Windows, Solar-Ray tinted - front windows only; excluding rearside and rear windows

Mechanical Equipment

• Rear wheel drive
• Air cleaner, dry type
• Cooling, anti-freeze protection temperature - -40 degrees F (-40 degrees C)
• Front shock absorber, diameter 1.375" (35mm)
• Front tire manufacturer code, Goodyear (Requires S4A Goodyear)
• Rear tire manufacturer code, Goodyear (Requires R4A Goodyear)
• Frame, 8mm - 80,000 psi (551,600 kPa) yield strength, steel frame, RBM: 610,400 Section Modulus 7.63
• Fuel sender assembly. Robust fuel pump
• Tethered fuel cap
• Brakes, rear, power, 4-wheel disc, 4 channel ABS 2-piston - (See Rear Axle options for more detail)
• Option PTO not required - This option should only be ordered when a customer specifically does not require an electric hand throttle for use with power-take-off provisions. (Note: may delete transmission PTO gear.)
• Front stabilizer bar, 2" x 2" square tube (5 cm x 5 cm)
• Rear shock absorber, 1.375" (35mm)
• Front wheels, 19.5" x 6.75" (49.5 cm x 17.1 cm), steel disc - 8-hole. 10,000 lbs. (4536 kg) capacity, (Requires Q83 steel rear wheel)
• Brakes, front, power, 4-wheel disc, 4 channel ABS 4-piston - (See Front Axle options for more detail)
• Front tread, premium, highway (Requires R4A Goodyear or R4L Michelin)
• Rear wheels, 19.5" x 6.75" (49.5 cm x 17.1 cm), steel disc - 8-hole, 20,000 lbs. (9072 kg) capacity, (Requires Q82 steel front wheel)
• Rear tire size, 225/70R19.5F - 13,660 lbs. (6196 kg) capacity, (With S4A Goodyear, requires S3C rear premium highway tread or S3H rear traction tread; with S4L Michelin, requires S3C rear premium highway tread or S3J rear highway traction tread; with S4N Bridgestone requires S3M rear all season tread)
• Rear tread, premium, highway (Requires S4A Goodyear or S4L Michelin)
• Road speed governor, controlled by the speed rating of the tires ordered which will be less than or equal to 85 mph (137 kph)
• Front suspension, tapered leaf, 7000 lbs. (3175 kg) capacity (includes stabilizer)
• Rear axle, single speed, 11,000 lbs. (4990 kg) capacity - full floating, Includes 2-piston brake applied calipers
• Wheelbase, 169" (429.3 cm) - with 60" (152.4) CA and 121" (307.3 cm) CE. Includes a 8 mm 80,000 psi (551,600 kPa) yield strength, steel frame, RBM: 824,800 section Modulus 10.31
• Parking brake, hand lever operated transmission mounted drum brake
• Front tire size, 225/70R19.5F - 7280 lbs. (3802 kg) capacity, (With R4A Goodyear or R4L Michelin, requires R3C front premium highway tread; with R4N Bridgestone requires R3M front all season tread)
• Rear axle ratio, 5.13:1 - Not recommended for most applications, (Requires gasoline engines only)
• Engine, Vortec 8100MD gasoline V8, 225 hp (167 kw) @ 3600 rpm and 350 lb-ft torque (473 N-m) @ 1,200 rpm. - Maximum engine speed 5000 rpm
• Alternator, AD230 Delco Remy 105-amp maximum (N/A with YW2 wrecker package)
• Exhaust, single horizontal - passenger side mounted inside frame rail, stainless-steel with gasoline engines, aluminized steel with diesel engines
• GVWR, 16,500 lbs. (7484 kg) capacity - GCWR limited to 24,000 lb. (10,866 kg)
• Battery, single 600CCA Delphi Freedom 12V - 115-minute reserve capacity @ 27 degrees C, 600 CCA @ -18 degrees C grounded directly to starter, (Requires LQR gasoline engine) (N/A with YW2 wrecker packages)
• Transmission, Allison 1000 Series automatic - with 0.71 overdrive. Torque Rating: 520 lb-ft (705 N-m). Column shift. Base model does not include power take-off gear. To include PTO gear please order with RPO "PTO". Includes transmission-oil cooler located inside radiator and an air-to-oil auxiliary cooler. PTO mounting location on the driver's side. With Option PTX, the truck will be equipped with the Allison 1000HS Highway Series transmission. When ordered with option PTO, the truck will be equipped with the Allison 1000RDS Rugged Duty Series transmission.
• Front axle, 7000 lbs. (3175 kg) capacity - I-beam Wide-trac. Up to 53 degree turn angle, (Includes 4-piston brake apply calipers)
• Rear suspension, tapered leaf, 11,000 lbs. (4990 kg) capacity (Requires GN1 rear stabilizer bar)
• Rear stabilizer bar, provides increased load stabilization - improves handling and reduces vehicle roll. Does not adversely affect ride. Diameter 44mm, (Required with taper leaf springs) (Available with multi leaf springs)
• Fuel tank, single, 40-gallon (151L) fuel capacity - gas or diesel, located behind rear axle with fuel fill neck through frame rail, DRIVER SIDE FILL NECK ONLY. NO AUXILIARY FUEL PORTS (N/A with YW2 Wrecker Package) MINIMUM OVERHANG = 60" (5 FEET)
