2015 Kia Soul EV battery module 14 cells 75AH 51.8V

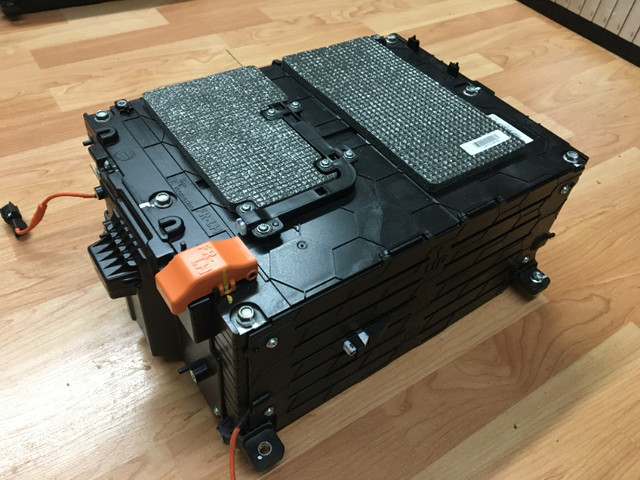

Battery module that come from a 2015 Kia Soul EV with 60 000km.

These battery modules are made with SK Innovation cells (75AH)

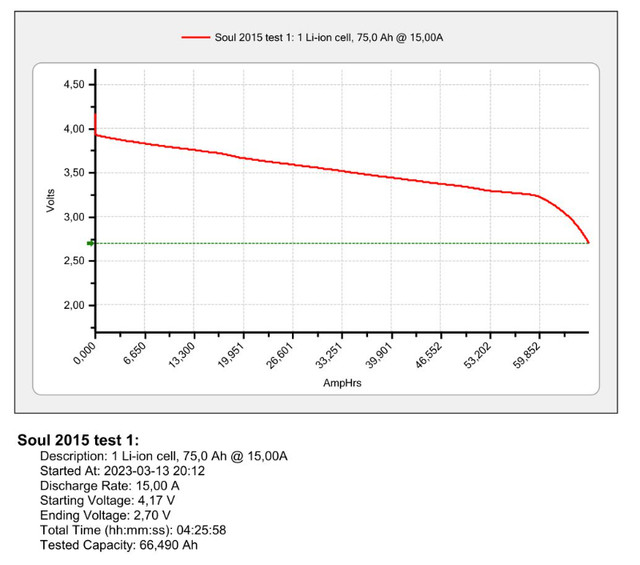

TESTED AT 66AH (SEE TEST RESULT IN THE PICTURES)

About the module : Each modules contain 14 cells Nominal Module Voltage: 51.8 V Maximum Module Charge Voltage: 58.8 V Minimum Module Discharge Voltage: 42V Capacity: 75AH (66AH tested) Max continous discharge : 2C (222A) Dimension : 17" x 12.5" x 5.25" Weight : 61 pounds

Original BMS plug with a few inches of wire are included with each module.
